Lightweight Pillar PSR Aero X-TRA 1420 Straight Pull Gauge 14G 2.0mm Super Light 4.3g Per Piece Same As Sapim Cx Ray Standard
The link price is not include the nipples, if you need nipples, please contact with us.
1) Pillar 1420 Spoke Specifications:
Head: J-bend or Straight pull
Size: 2.0mm - 14G
Length: 210 - 290mm
Weight: 4.3g/pc (260mm)
J-bend: 215mm, 218mm, 221mm, 243mm, 246mm,249mm, 253mm, 257mm, 259mm,264mm,268mm,271mm,278mm,282mm,284mm,286mm
Straight pull: 217mm, 226mm,221mm,244mm,249mm,252mm,254mm,259mm,262mm,266mm,271mm,274mm,281mm,284mm,290mm
we can cut any length from 210mm -221mm, 236mm-290mm if you need, MIX LENGTH IS ACCEPTABLE.
Please let US know the length of spokes you want after you finish payment,
we have below option available :
Spoke length: 210mm -221mm, 236mm-290mm

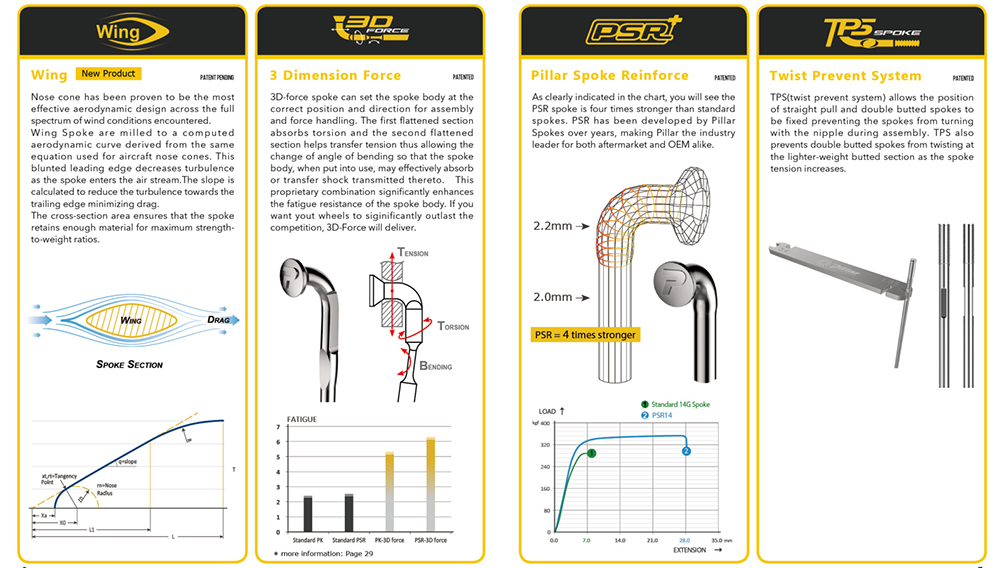

Nose cone has been proven to be the most effective aerodynamic design across the full spectrum of wind conditions encountered.
Wing Spoke are milled to a computed aerodynamic curve derived from the same equation used for aircraft nose cones.
This blunted leading edge decreases turbulence as the spoke enters the air stream.The slope is calculated to reduce the turbulence towards the trailing edge minimizing drag.The cross-section area ensures that the spoke retains enough material for maximum strength-to-weight ratios.
