ATTENTION!
Please select the options you need when buying. Each option only represents the height and width of the rim. If you need tubelss / clincher / tubular rims. After you pay, please leave us a message and tell me about more details .
about more details,we need to know the following options
Finishing :UD/3k /3k twill/ 6k/ 6k twill/ 12k /12k twill; matte/glossy;
TYPE :Tubular / Clincher / Tubeless(30mm depth 27mm no clincher type;47mm depth 27mm no clincher and tubular type ;Others have three types)
Braking surface :basalt / ud / 3k / 3k twill( If you choose disc brake version,then no brake surface is required.)
If you need to send an order using DPD please choose "seller's shipping method" when you place order, tracking number is also available .
please contact us to check whether you can use this service.
If you don't know about DPD shipping, you can find out it in your country's forum or contact us.
Kindly note: If need to use "seller's shipping method" ,
please tell us your zip code first, we need to confirm whether it is in a remote area.
If it's remote area, it need to pay Extended Area Surcharge $40.
Our decals have been upgraded, and now there are two versions of decals to choose from
Carbon Road Bi k e Wheels 700C 38mm depth Bitex R13 QR J-Bend 20/24H Clincher 3K Matt
Description:
Model
FD-WH-38C-W23
Use
Road Bike
Size
700C
Material
High tensile Toray T700 full Carbon Fiber

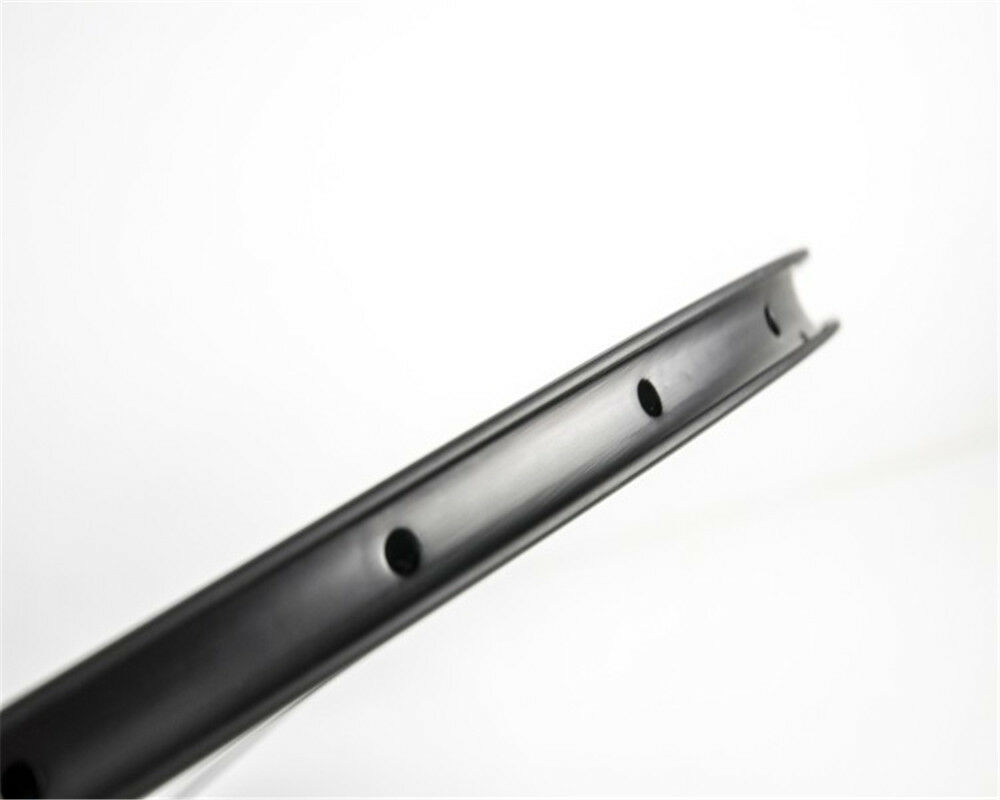

Rims
V Shape/ Clincher
Weave
3K
Finish
Matt
Brake Surface
carbon fiber/Basalt Brake Surface
Depth
38mm
Outer width
23mm
Front hub
Bitex R 13 /Quick Release/9*100
Rear hub
B itex R 13 /Quick Release/ 10*130
Spoke
Pillar1423
Spoke Hole
20/24H
Nipples
external alloy nipples ac18, black
Valve diameter
6.5mm(presta valve)
Cassette
Shimano 9/10/11 speed
Weight
1500+/-5%
Offset
<=0.2mm
Roundness
<=0.5mm Center
Vertical Alignment
<=0. 3 mm Packing
Hand-built
100% handbuilt high precision
Decal
Without Decal
Max Rider Weight
85kg/185Ibs (recommend max)
Alignment
<=0.5mm
OE packing
17*66*84cm
Standard
EN
Guarantee:
1 year
