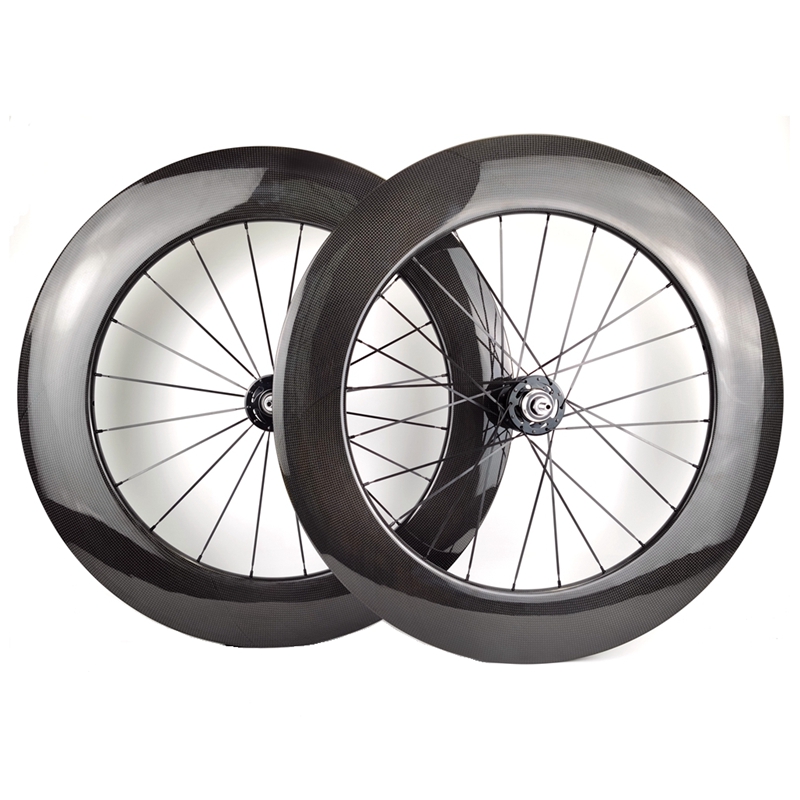

700C track bicycle carbon wheels 88mm clincher fixed gear single speed bike carbon wheelset with Novatec 165/166 hubs
Please note that:
3K glossy one set is without braking track. (20-24 holes)
UD glossy rear only with braking track (32 holes)
UD matte rear only with braking track (32 holes)
Description
| Rim | Used for | Road bike fixedgear track bike |
| Meterial | T700 Toray Carbon Fiber | |
| Size | 700C | |
| Type | Clincher | |
| Weave options | 3K glossy | |
| Finish | Glossy | |
| Depth | 88mm | |
| Brake track width | 25mm | |
| Weight | 630g | |
| Hole count | 20/24 | |
| Hole type | External | |
| ERD | 469mm | |
| Hub | Model name | Novatec A165SBT/A166SBT Alloy Track hubs |
| Sealed Bearlings | Front:2 Rear:2 | |
| O.L.D | Front:100mm Rear:120mm | |
| Compatible | single speed | |
| Color | Black(Red Available) | |
| Weight | Front:188g Rear:249g | |
| Spoke | Pattern | Front -------------------- radial |
| Rear drive side -------------------- 2X cross | ||
| Rear non drive side --------------- radial | ||
| Length | Front -------------------- 214mm | |
| Rear drive side -------------------- 214mm | ||
| Rear non drive side --------------- 214mm | ||
| Shape | Pillar 1432/1423 |
|
| Color | Black | |
| Nipple | Meterial | Alloy Nipple AC16 |
| Color | Black(Red/silvery Available) | |
| Brake surface | Meterial | non |
| Width | ||
| Paramete | Max tire pressure | 125 psi |
| Max ride weight | 120kg/240lb | |
| Quick releases color | Black/ Red | |
| Including items | Front and rear wheelsets,quick releases and gifts | |
| Warranty | 24 months |
Wheelsets Weight
weight:1875+/-30g

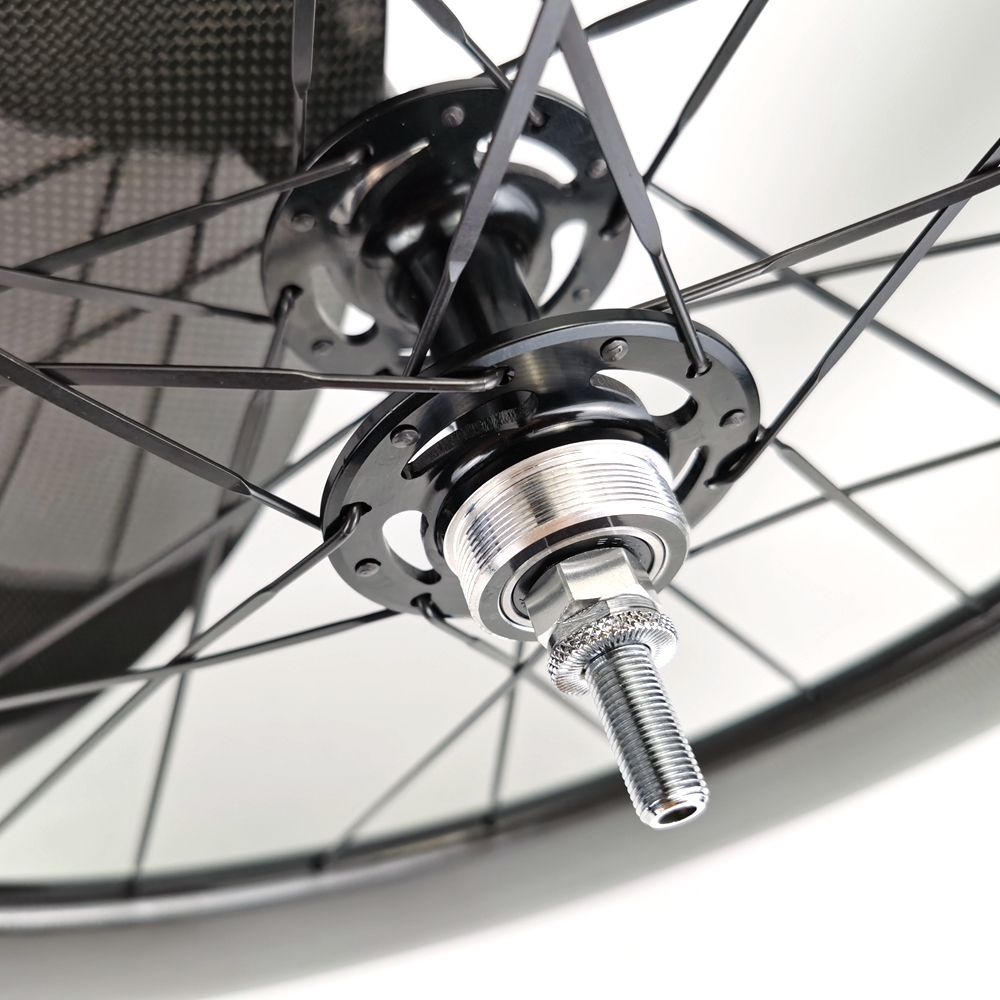

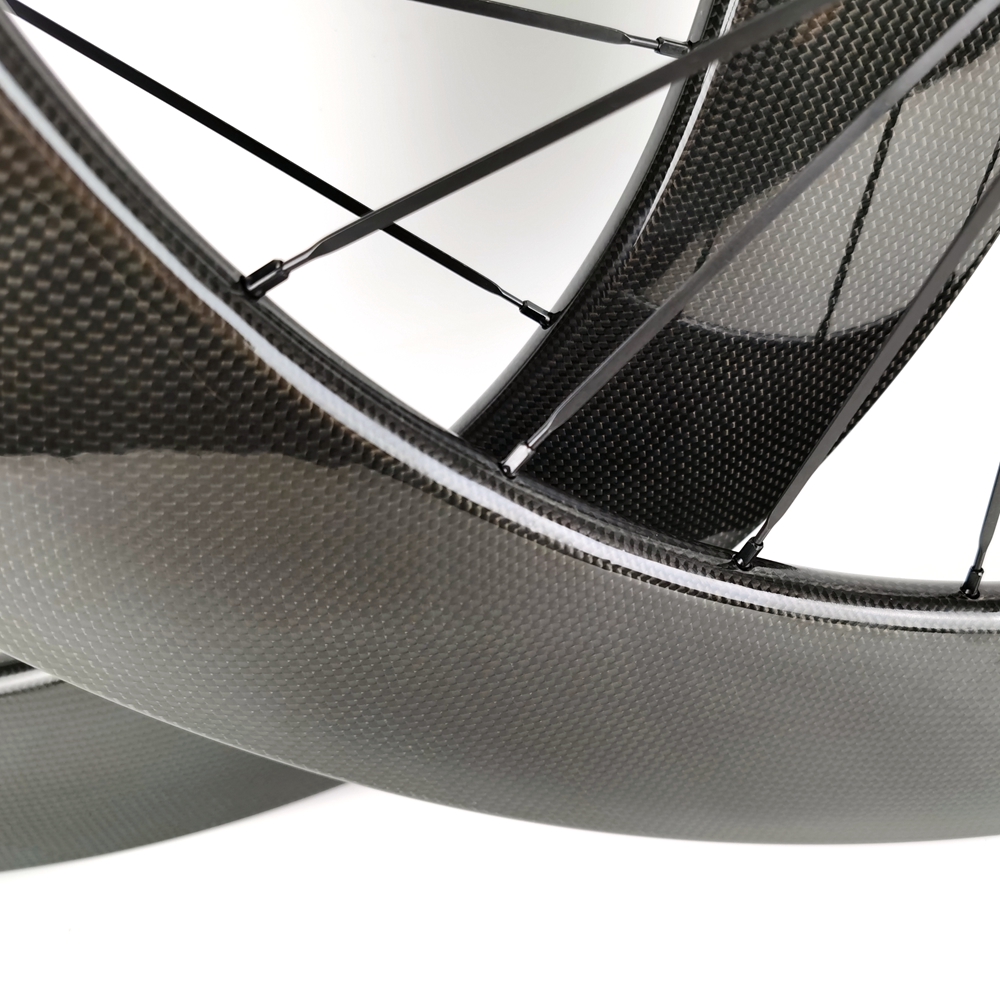

Details picture
Rims section drawing
|
|
|
|
|
|
|
|
|
|
|
